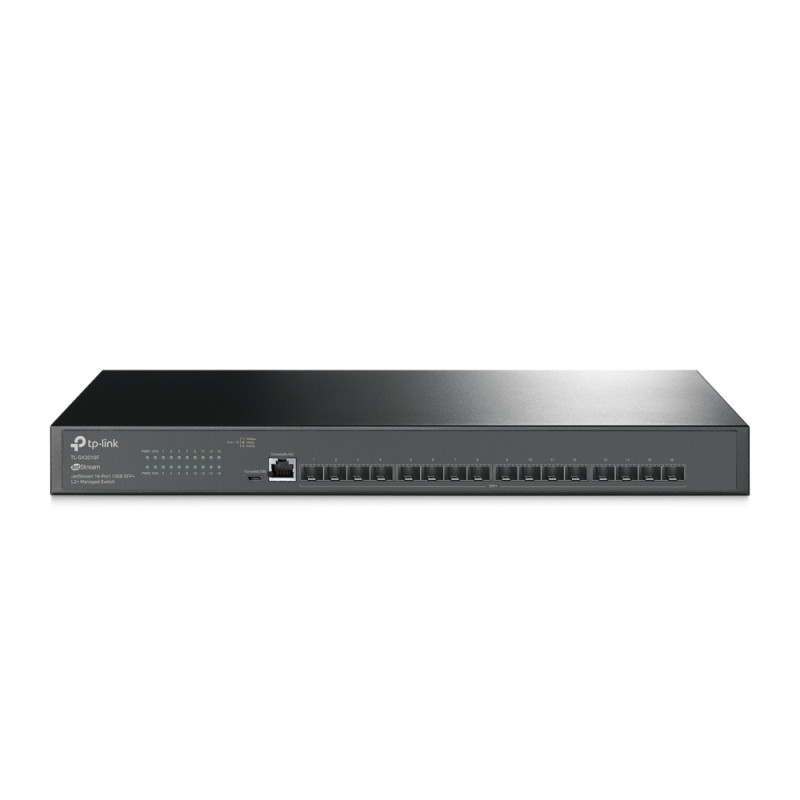

TP Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

10574

TP-Link

New product

  • 16× Full 10GE SFP+ Slots
  • Abundant L2 and L2+ Features
  • Robust Security Strategies
  • Dual Redundant Power Supplies
  • Centralized Cloud Management
  • Standalone Management:

More details

Send to a friend by WhatsApp

₨. 205,000.00

  • 1 Year Warranty

Add to wishlist

More info

Full Fiber Switch with LightningFast 10G
Build and expand your lightningfast network with TPLink TLSX3016F—a fully managed switch with full 16port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for highspeed, reliable, and safe enterprise networks.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Dual Redundant Power Supplies
Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Our highquality security features defend against a range of network threats. They include IPMACPortVID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.

HARDWARE FEATURES
Interface  16× 10GE SFP+ Slots
 1× RJ45 Console Port
 1× MicroUSB Console Port
Fan Quantity 1
Power Supply 100240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 32.74 W (220 V / 50 Hz)
Max Heat Dissipation 111.71 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity 320 Gbps
Packet Forwarding Rate 238.08 Mpps
MAC Address Table 32 K
Packet Buffer Memory 24 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service  8 priority queues
 802.1p CoS/DSCP priority
 Queue scheduling
 SP (Strict Priority)
 WRR (Weighted Round Robin)
 SP+WRR
 Bandwidth Control
 Port/Flow based Rating Limiting
 Smoother Performance
 Action for Flows
 Mirror (to supported interface)
 Redirect (to supported interface)
 Rate Limit
 QoS Remark
L2 and L2+ Features  Link Aggregation
 static link aggregation
 802.3ad LACP
 Up to 8 aggregation groups, containing 8 ports per group
 Spanning Tree Protocol
 802.1d STP
 802.1w RSTP
 802.1s MSTP
 STP Security: TC Protect, BPDU Filter, Root Protect
 Loopback Detection
 Port based
 VLAN based
 Flow Control
 802.3x Flow Control
 HOL Blocking Prevention
 Mirroring
 Port Mirroring
 CPU Mirroring
 OnetoOne
 ManytoOne
 Tx/Rx/Both
L2 Multicast  IGMP Snooping
 IGMP v1/v2/v3 Snooping
 Fast Leave
 IGMP Snooping Querier
 IGMP Authentication
 IGMP Authentication
 MLD Snooping
 MLD v1/v2 Snooping
 Fast Leave
 MLD Snooping Querier
 Static Group Config
 Limited IP Multicast
 MVR
 Multicast Filtering: 256 profiles and 16 entries per profile
VLAN  VLAN Group
 Max 4K VLAN Groups
 802.1Q Tagged VLAN
 MAC VLAN: 30 Entries
 Protocol VLAN: Protocol Template 16, Protocol VLAN 16
 Private VLAN
 GVRP
 VLAN VPN (QinQ)
 PortBased QinQ
 Selective QinQ
 Voice VLAN
Access Control List  Timebased ACL
 MAC ACL
 Source MAC
 Destination MAC
 VLAN ID
 User Priority
 Ether Type
 IP ACL
Source IP
 Destination IP
 Fragment
 IP Protocol
 TCP Flag
 TCP/UDP Port
 DSCP/IP TOS
 User Priority
 Combined ACL
 Packet Content ACL
 IPv6 ACL
 Policy
 Mirroring
 Redirect
 Rate Limit
 QoS Remark
 ACL apply to Port/VLAN
Security  IPMACPort Binding
 512 Entries
 DHCP Snooping
 ARP Inspection
 IPv4 Source Guard: 100 Entries
 IPv6MACPort Binding
 512 Entries
 DHCPv6 Snooping
 ND Detection
 IPv6 Source Guard: 100 Entries
 DoS Defend
 Static/Dynamic Port Security
 Up to 64 MAC addresses per port
 Broadcast/Multicast/Unicast Storm Control
 kbps/ratio control mode
 802.1X
 Port base authentication
 Mac base authentication
 VLAN Assignment
 MAB
 Guest VLAN
 Support Radius authentication andaccountability
 AAA (including TACACS+)
 Port Isolation
 Secure web management through HTTPS with SSLv3/TLS 1.2
 Secure Command Line Interface (CLI) management with SSHv1/SSHv2
 IP/Port/MAC based access control
IPv6  IPv6 Dual IPv4/IPv6
 Multicast Listener Discovery (MLD) Snooping
 IPv6 ACL
 IPv6 Interface
 Static IPv6 Routing
 IPv6 neighbor discovery (ND)
 Path maximum transmission unit (MTU) discovery
 Internet Control Message Protocol (ICMP) version 6
 TCPv6/UDPv6
 IPv6 applications
 DHCPv6 Client
 Ping6
 Tracert6
 Telnet (v6)
 IPv6 SNMP
 IPv6 SSH
 IPv6 SSL
 Http/Https
 IPv6 TFTP
L3 Features  16 IPv4/IPv6 Interfaces
 Static Routing
 48 static routes
 Static ARP
 128 Static Entries
 Proxy ARP
 Gratuitous ARP
 DHCP Server
 DHCP Relay
 DHCP Interface Relay
 DHCP VLAN Relay
 DHCP L2 Relay
Advanced Features  Automatic Device Discovery
 Batch Configuration
 Batch Firmware Upgrading
 Intelligent Network Monitoring
 Abnormal Event Warnings
 Unified Configuration
 Reboot Schedule
MIBs  MIB II (RFC1213)
 Interface MIB (RFC2233)
 Ethernet Interface MIB (RFC1643)
 Bridge MIB (RFC1493)
 P/QBridge MIB (RFC2674)
 RMON MIB (RFC2819)
 RMON2 MIB (RFC2021)
 Radius Accounting Client MIB (RFC2620)
 Radius Authentication Client MIB (RFC2618)
 Remote Ping, Traceroute MIB (RFC2925)
 Support TPLink private MIB
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada CloudBased Controller, or Omada Software Controller.
Centralized Management  Omada CloudBased Controller
 Omada Hardware Controller (OC300)
 Omada Hardware Controller (OC200)
 Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada CloudBased Controller, or Omada Software Controller.
ZeroTouch Provisioning Yes. Requiring the use of Omada CloudBased Controller.
Management Features  Webbased GUI
 Command Line Interface (CLI) through the console port, telnet
 SNMP v1/v2c/v3
 Trap/Inform
 RMON (1,2,3,9 groups)
 SDM Template
 DHCP/BOOTP Client
 802.1ab LLDP/LLDPMED
 DHCP AutoInstall
 Dual Image, Dual Configuration
 CPU Monitoring
 Cable Diagnostics
 EEE
 Password Recovery
 SNTP
 System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents  TLSX3016F Switch
 2× Power Cords
 Quick Installation Guide
 Rackmount Kit
 Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment  Operating Temperature: 0–45 ℃ (32–113 ℉);
 Storage Temperature: 40–70 ℃ (40–158 ℉)
 Operating Humidity: 10–90% RH noncondensing
 Storage Humidity: 5–90% RH noncondensing
