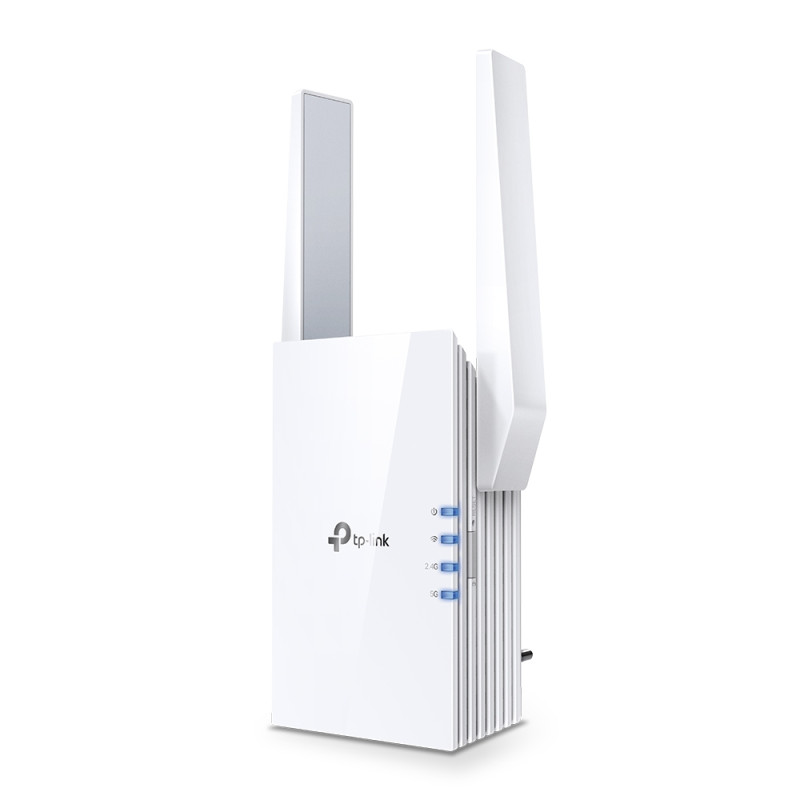

TP-Link RE505X - AX1500 Wi-Fi Range Extender
10023
TP-Link
New product
- Gigabit Ethernet Port
- Intelligent Signal Light
- AP Mode
- TP-LINK Tether App
- Ultimate Compatibility
More info
| Cutting-Edge Wi-Fi 6 |
| The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections. |
| Fill Every Inch of Your Home with Wi-Fi 6 |
| The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere. |
| Built-In Access Point Mode |
| RE505X is more than just a wireless range extender.Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal. |
| TP-Link OneMesh |
| OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection. |
| Control at Your Fingertips |
| Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders. |
| HARDWARE FEATURES | |
| Ports | 1 Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 10W |
| Dimensions ( W x D x H ) | 2.9×1.8×4.9 in. (74.0×46×124.8 mm) |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz: |
| 11a 6Mbps: -93dBm, | |
| 11a 54Mbps: -75dBm | |
| 11ac HT20 MCS0: -92dBm, | |
| 11ac HT20 MCS8: -70dBm | |
| 11ac HT40 MCS0: -90dBm, | |
| 11ac HT40 MCS9: -66dBm | |
| 11ac HT80 MCS0: -87dBm, | |
| 11ac HT80 MCS9: -62dBm | |
| 2.4GHz: | |
| 11g 54Mbps: -77dBm, | |
| 11n HT20 MCS7: -75dBm | |
| 11n HT40 MCS7: -72dBm | |
| Wireless Functions | Enable/Disable Wireless Radio |
| DFS (the latest firmware and hardware version is required) | |
| Access Control | |
| LED Control | |
| Power Schedule | |
| Wi-Fi Coverage | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK encryptions |
| Transmission Power | CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Wi-Fi Range Extender RE505X |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser | |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
