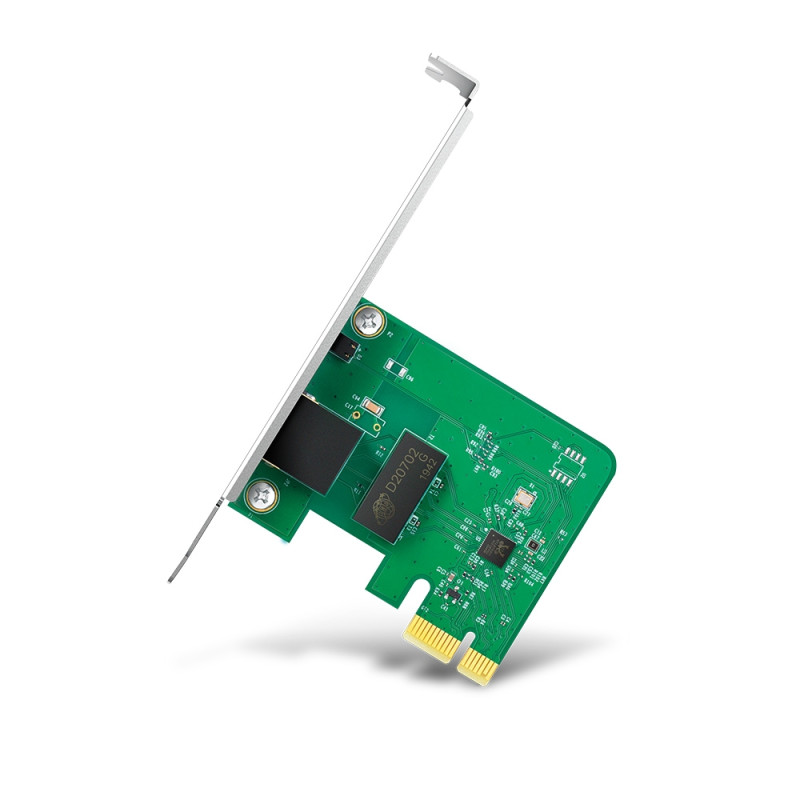

TP-link TG-3468 Gigabit PCI Express Network Adapter
10009
TP-Link
New product
- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN
More info
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Interface | PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000Base-T: UTP category 5, 5e cable (maximum 100m) | |
| LED | Status |
| Data Rates | 10/100/1000Mbps for Half-Duplex mode, |
| 20/200/2000Mbps for Full-Duplex mode | |
| Dimensions | 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| OTHERS | |
| Certification | FCC, CE, RoHS, BSMI, VCCI |
| Package Contents | Gigabit PCI Express Network Adapter TG-3468 |
| Quick Installation Guide | |
| Resource CD | |
| Low-profile Bracket | |
| System Requirements | Windows 11/10/8.1/8/7 |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
