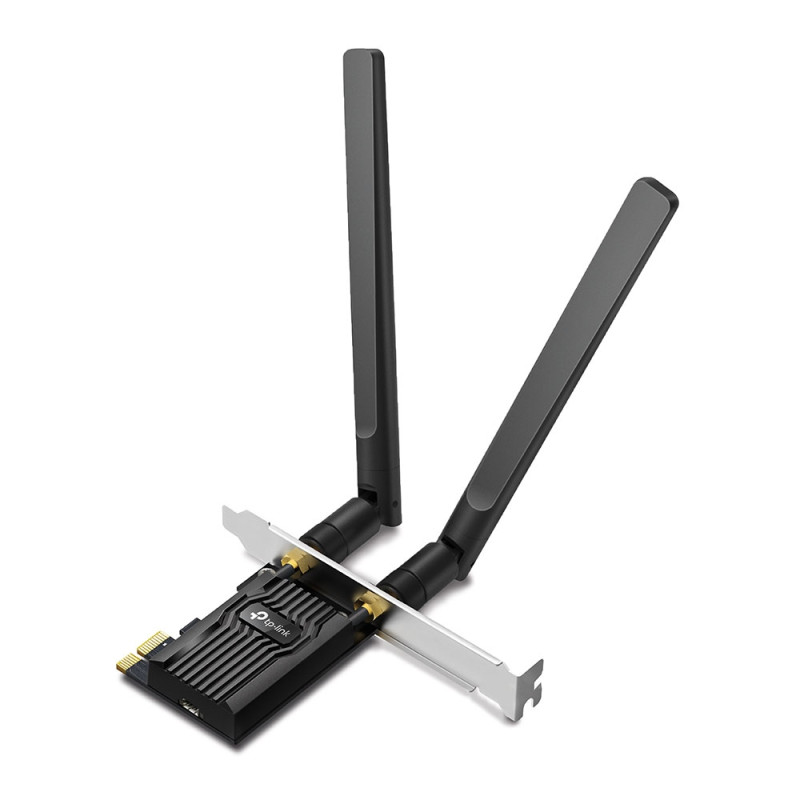

TP-link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
10011
TP-Link
New product
- Unrivalled Wi-Fi 6 Speed
- Wider Signal Coverage
- Bluetooth 5.2
- Improved Security
- Backward Compatibility
More info
| Wi-Fi 6 Upgrades Everything |
| The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections. |
| More Devices, Less Congestion |
| OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating. |
| High-Gain Antennas for Broader Coverage |
| Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away. |
| Bluetooth 5.2 Compatible |
| The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices. |
| Cutting-Edge Security |
| WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online. |
| HARDWARE FEATURES | |
| Dimensions ( W x D x H ) | 4.76 × 3.09 × 0.82 in |
| (120.8 × 78.5 × 20.9 mm) | |
| Antenna | Two High-Gain Dual Band Antennas |
| Chipset | Realtek Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/g/b 2.4 GHz | |
| Bluetooth 5.2 | |
| WLAN Signal Rate | 5 GHz |
| 11ax: Up to 1201 Mbps(dynamic) | |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11ax: Up to 574 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| WLAN Reception Sensitivity | 5 GHz : |
| 11ax HE80: -57.0dBm | |
| 11ax HE40: -60.0dBm | |
| 11ax HE20: -63.0dBm | |
| 11ac VHT80: -59.5dBm | |
| 11ac VHT40: -62.5dBm | |
| 11ac VHT20: -67.5dBm | |
| 11n HT40: -69.5dBm | |
| 11n HT20: -72.5dBm | |
| 11a 54Mbps: -74.0dBm | |
| 11a 6Mbps: -94.5dBm | |
| 2.4GHz : | |
| 11ax HE40: -60.0dBm | |
| 11ax HE20: -63.0dBm | |
| 11n HT40: -69.5dBm | |
| 11n HT20: -72.5dBm | |
| 11g 54Mbps: -74.0dBm | |
| 11b 11Mbps: -88.0dBm | |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) | |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | Archer TX20E |
| Two High-Gain Dual Band Antennas | |
| Low-Profile Bracket | |
| Bluetooth Header Cable | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 11/10(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
