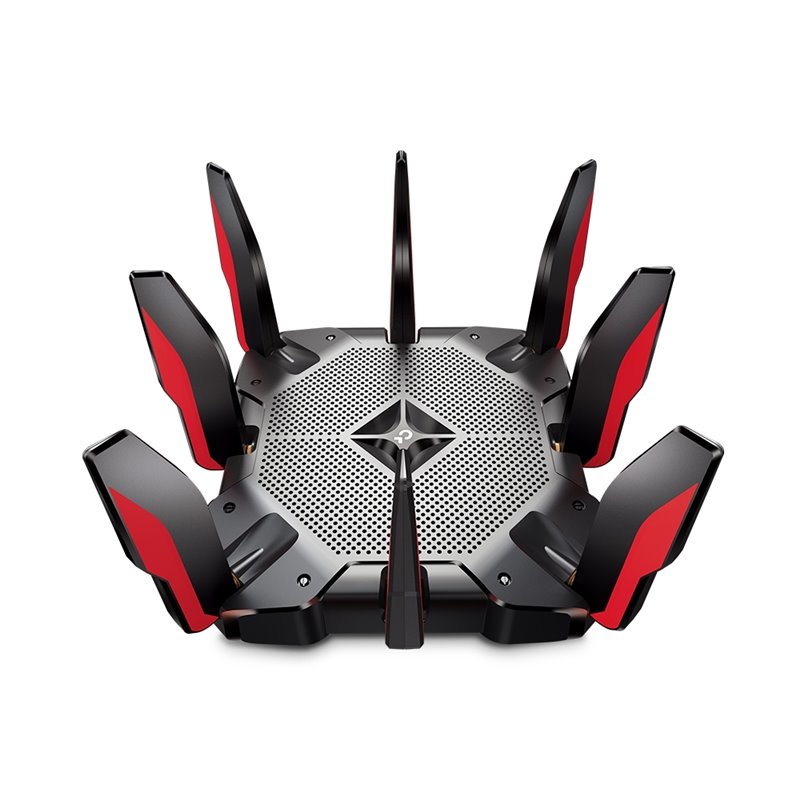

TP link Archer AX11000 - Tri-Band Wi-Fi 6 Gaming Router

10505

TP-Link

New product

  • Ultra-Fast Wi-Fi for Extreme Gaming
  • Game Accelerator
  • Game Protector
  • Game Statistics
  • Ultra Connective
  • Powerful Processing

More details

Send to a friend by WhatsApp

₨. 100,000.00

  • 1 Year Warranty

Add to wishlist

More info

Lightning Attack to Defeat Latency
More connected devices mean more fun, without dragging down performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.
OFDMA
Multiple devices share one channel at same time.
MU-MIMO
Offer 4×4 connections to reduce wait time.
Beamforming
Larger area coverage serves numerous devices.
Crush the Lag Win the Game
Game Accelerator automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.
Know Your Network
Game Statistics shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.
Keep All Elements Security
Game Protector keeps your accounts and system safe. This enhanced HomeCare™ security system is powered by Trend Micro™, delivering comprehensive antivirus protection that ensures your total security while gaming online.
Game on the Fast Lane
Gaming Band—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.DFS expands available channel automatically, get on the more vacant lane and boost the game.
Battle-Tested Hardware
Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX11000
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 4-6 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
12 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
VPN Client OpenVPN
PPTP
L2TP
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports
USB Support 1× USB-C 3.0 Port
1× USB-A 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 5 A
SOFTWARE
Protocols IPv4
IPv6
Game Center Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible
Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail
Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits HomeCare™
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service Game Accelerator QoS
QoS by Device
HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz_1:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
5 GHz_2:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
2.4 GHz：
11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
PHYSICAL
Dimensions (W×D×H) 11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm)
Package Contents Wi-Fi Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
