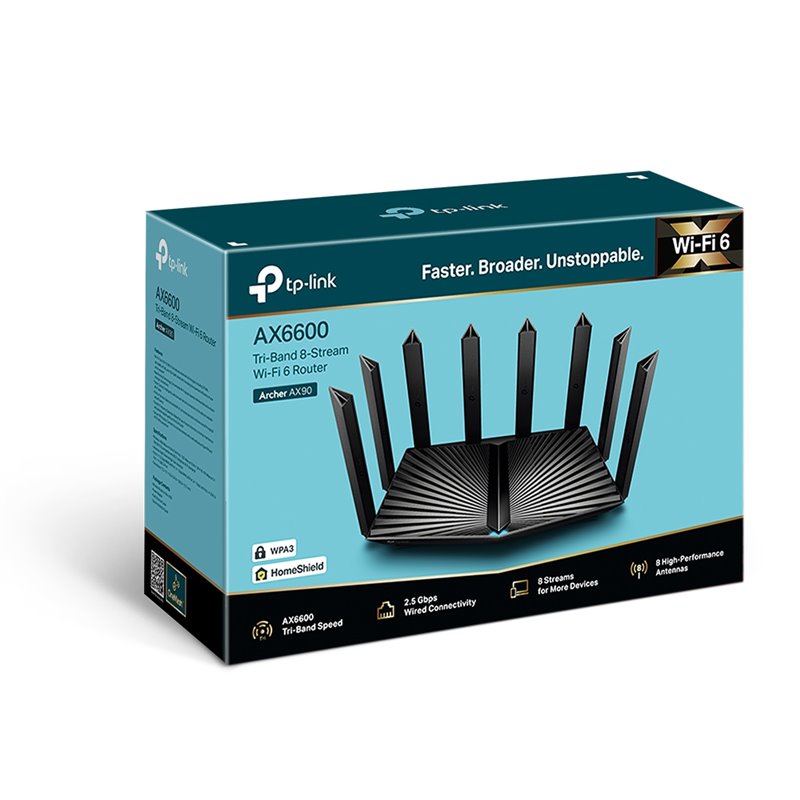

TP-link Archer AX90 - AX6600 Tri-Band Wi-Fi 6 Router

10512

TP-Link

New product

  • Faster AX6600 Tri-Band Wi-Fi - 4804 Mbps (5 GHz) + 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
  • Ultra Connectivity - 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
  • Maximized Coverage - Eight high-gain antennas equipped with Beamforming ensure vast coverage.
  • More Devices with Less Lag - OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
  • TP-Link HomeCare - Enhanced security defends against the latest cyber threats.
  • Powerful CPU - 1.5 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
  • Refined Security—WPA3 reinforces Wi-Fi encryption for improved security.

More details

Send to a friend by WhatsApp

₨. 75,000.00

  • 1 Year Warranty

Add to wishlist

More info

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz-1 Guest Network
1× 5 GHz-2 Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
VPN Client  Open VPN Client
 PPTP VPN Client
 L2TP VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN/LAN Port
1× 1 Gbps WAN/LAN Port
3× 1 Gbps LAN Ports
USB Support 1× USB 3.0 Port
1× USB 2.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 3.3 A
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
All OneMesh Products
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz:
11n HT20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS11:-62dBm
5GHz-1:
11ac VHT20 MCS0:-92dBm
11ax HE20 MCS11:-61dBm
11ax HE40 MCS11:-58dBm
11ax HE80 MCS11:-55dBm
5GHz-2:
11ac VHT20 MCS0:-95dBm
11ax HE20 MCS11:-61dBm
11ax HE40 MCS11:-58dBm
11ax HE80 MCS11:-55dBm
11ax HE160 MCS11:-53dBm
PHYSICAL
Dimensions (W×D×H) 12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm)
Package Contents Wi-Fi Router Archer AX90
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
