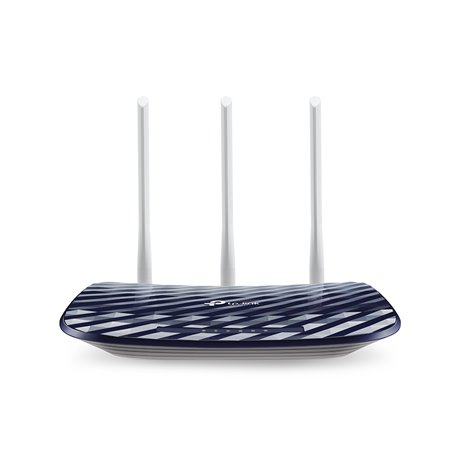

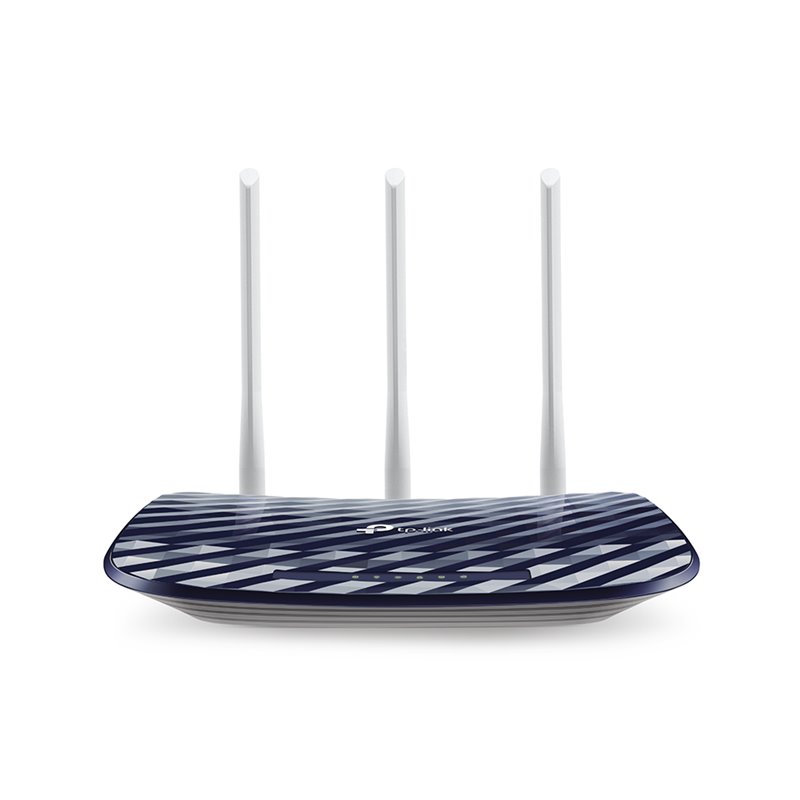

TP-link Archer C20 - AC750 Wireless Dual Band Router
10513
TP-Link
New product
- Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth
- Three external antennas provide stable omnidirectional signal and superior wireless coverage
- Supports three modes：Router，Range Extender and Access Point Modes
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming
- Parental Controls manage when and how connected devices can access the internet
- Guest Network provides separate access for guests while securing the host network
More info
| Advanced 733Mbps Dual Band Connections |
| With 433 Mbps wireless speed over the 5GHz band and 300 Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time. |
| Stable Omnidirectional Signal and Superior Coverage |
| With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office. |
| Smooth HD Streaming |
| IGMP Proxy/Snooping, Bridge, and Tag VLAN optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free. Put an end to buffering and stuttering videos once and for all and enjoy pleasant home entertainment. |
| Guest Network Access |
| The Guest Network function provides secure access for guests to use your Wi-Fi network. Share with anyone, without compromising your private network. Make sharing easy and maintain security. |
| Easy Setup and Use |
| Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS devices, including parental controls and access control. |
| WIRELESS | |
| Standards | Wi-Fi 5 |
| IEEE 802.11ac/n/a 5 GHz | |
| IEEE 802.11n/b/g 2.4 GHz | |
| WiFi Speeds | AC750 |
| 5 GHz: 433 Mbps (802.11ac) | |
| 2.4 GHz: 300 Mbps (802.11n) | |
| WiFi Range | 2 Bedroom Houses |
| 3× Fixed Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| WiFi Capacity | Medium |
| Dual-Band | |
| Allocate devices to different bands for optimal performance | |
| Working Modes | Router Mode |
| Access Point Mode | |
| Range Extender Mode | |
| SECURITY | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| WiFi Encryption | WEP |
| WPA | |
| WPA2 | |
| WPA/WPA2-Enterprise (802.1x) | |
| HARDWARE | |
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port |
| 4× 10/100 Mbps LAN Ports | |
| Buttons | WPS/Wi-Fi Button |
| Power On/Off Button | |
| Reset Button | |
| Power | 9 V ⎓ 0.6 A |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Parental Controls | URL Filtering |
| Time Controls | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server |
| Port Forwarding | |
| Port Triggering | |
| DMZ | |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | NO-IP |
| Comex | |
| DynDNS | |
| Management | Tether App |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20dBm(2.4GHz) | |
| <23dBm(5GHz) | |
| WiFi Reception Sensitivity | 5GHz: |
| 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; | |
| 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: | |
| -62dBm | |
| 2.4GHz: | |
| 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; | |
| 11n HT40 MCS7: -71dBm | |
| PHYSICAL | |
| Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in |
| (230 × 144 × 35 mm) | |
| Package Contents | Wi-Fi Router Archer C20 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
