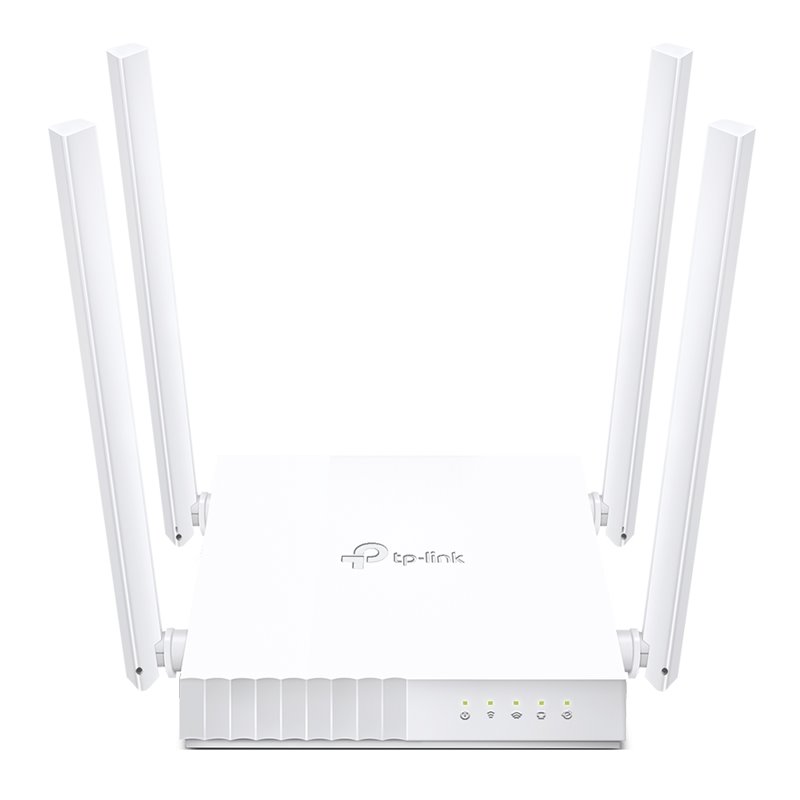

TP-link Archer C24 - AC750 Dual-Band Wi-Fi Router
10514
TP-Link
New product
- High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
- Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
- Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests while securing the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
More info
| Doubling Bandwidth with Dual Band |
| AC Dual band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides far-reaching, stable connection to the rest of your devices. |
| Stable and Far-Reaching |
| Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage,supporting buffer-free surfing and stalling-free downloading. |
| Router Mode (Default) |
| Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices. |
| Access Point Mode |
| Transform your existing wired network into a wireless one. |
| Range Extender Mode |
| Boost the existing wireless coverage in your house. |
| High Integration, Compact Size |
| Archer C24's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design. |
| As Stable as a Larger One |
| Archer C24 goes through rigorous repeated testing to ensure a final product reliable under a number of strenous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours. |
| WIRELESS | |
| Standards | Wi-Fi 5 |
| IEEE 802.11ac/n/a 5 GHz | |
| IEEE 802.11n/b/g 2.4 GHz | |
| WiFi Speeds | AC750 |
| 5 GHz: 433 Mbps (802.11ac) | |
| 2.4 GHz: 300 Mbps (802.11n) | |
| WiFi Range | 2 Bedroom Houses |
| 4× Fixed Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| WiFi Capacity | Medium |
| Dual-Band | |
| Allocate devices to different bands for optimal performance | |
| Working Modes | Router Mode |
| Access Point Mode | |
| Range Extender Mode | |
| SECURITY | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| WiFi Encryption | WEP |
| WPA | |
| WPA2 | |
| WPA/WPA2-Enterprise (802.1x) | |
| HARDWARE | |
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port |
| 4× 10/100 Mbps LAN Ports | |
| Buttons | WPS Button |
| Reset Button | |
| Power | 5 V ⎓ 0.6 A |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Parental Controls | URL Filtering |
| Time Controls | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server |
| Port Forwarding | |
| Port Triggering | |
| DMZ | |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | NO-IP |
| Comex | |
| DynDNS | |
| Management | Tether App |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20dBm(2.4GHz) | |
| <23dBm(5GHz) | |
| WiFi Reception Sensitivity | 5GHz: |
| 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; | |
| 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: | |
| -62dBm | |
| 2.4GHz: | |
| 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; | |
| 11n HT40 MCS7: -71dBm | |
| PHYSICAL | |
| Dimensions (W×D×H) | 4.5 x 4.2 x 1.0 in |
| (115 x 106.7 x 24.3 mm) | |
| Package Contents | Wi-Fi Router Archer C24 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
