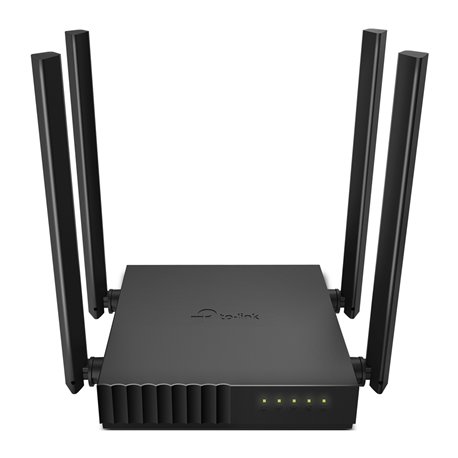

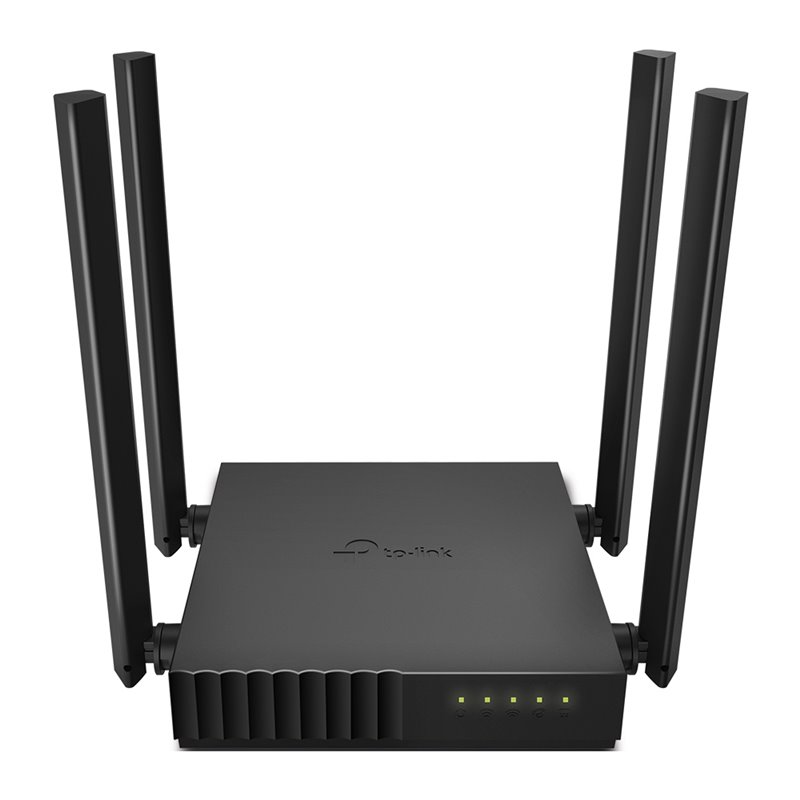

TP-link Archer C54 - AC1200 Dual Band Wi-Fi Router
10515
TP-Link
New product
- Faster AC Wi-Fi
- Far-Reaching Coverage
- Multi-Mode 3-in-1
- Parental Controls
- Guest Network
- Smooth HD Streaming
- IPv6 Supported
- Compact and Mountable
More info
| Fast Dual-Band WiFi |
| Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices. |
| Boosted Signal throughout Your Home |
| Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered. |
| Talk to Devices Simultaneously |
| Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP. |
| Router Mode (Default) |
| Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices. |
| Access Point Mode |
| Transform your existing wired network into a wireless one. |
| Range Extender Mode |
| Boost the existing wireless coverage in your house. |
| High Integration, Compact Size |
| Archer C54's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and multi-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design. |
| As Stable as a Larger One |
| Archer C54 goes through rigorous repeated testing to ensure a final product reliable under serveral strenuous environments. The final result: 8 randomly selected Archer C54 routers collectively tested for 1,936 hours. |
| WIRELESS | |
| Standards | Wi-Fi 5 |
| IEEE 802.11ac/n/a 5 GHz | |
| IEEE 802.11n/b/g 2.4 GHz | |
| WiFi Speeds | AC1200 |
| 5 GHz: 867 Mbps (802.11ac) | |
| 2.4 GHz: 300 Mbps (802.11n) | |
| WiFi Range | 3 Bedroom Houses |
| 4× Fixed Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| WiFi Capacity | Medium |
| Dual-Band | |
| Allocate devices to different bands for optimal performance | |
| MU-MIMO | |
| Simultaneously communicates with multiple MU-MIMO clients | |
| Working Modes | Router Mode |
| Access Point Mode | |
| Range Extender Mode | |
| SECURITY | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| WiFi Encryption | WPA |
| WPA2 | |
| WPA3 | |
| WPA/WPA2-Enterprise (802.1x) | |
| HARDWARE | |
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port |
| 4× 10/100 Mbps LAN Ports | |
| Buttons | WPS/Reset Button |
| Power | 9 V ⎓ 0.85 A |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Parental Controls | URL Filtering |
| Time Controls | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding |
| Port Triggering | |
| DMZ | |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | NO-IP |
| DynDNS | |
| Management | Tether App |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~60℃ (-40℉ ~140℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE EIRP: |
| <20dBm(2.4GHz) | |
| <23dBm(5GHz) | |
| FCC: | |
| <30dBm(2.4GHz & 5GHz) | |
| WiFi Reception Sensitivity | 5GHz: |
| 11a 6Mbps:-93dBm； | |
| 11a 54Mbps:-78dBm； | |
| 11ac HT20 mcs8:69dBm; | |
| 11ac HT40 mcs9:-66dBm; | |
| 11ac HT80 mcs9:-62dBm; | |
| 2.4GHz: | |
| 11g 54Mbps:-78dBm; | |
| 11n HT20 mcs7:-74dBm; | |
| 11n HT40 mcs7:-71dbm； | |
| PHYSICAL | |
| Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in |
| (115 × 106.7 × 24.3 mm) | |
| Package Contents | Wi-Fi Router Archer C54 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
