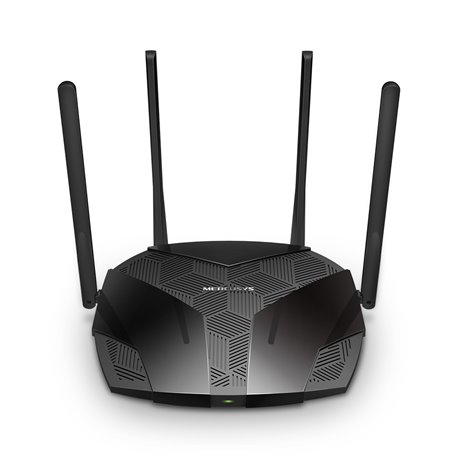

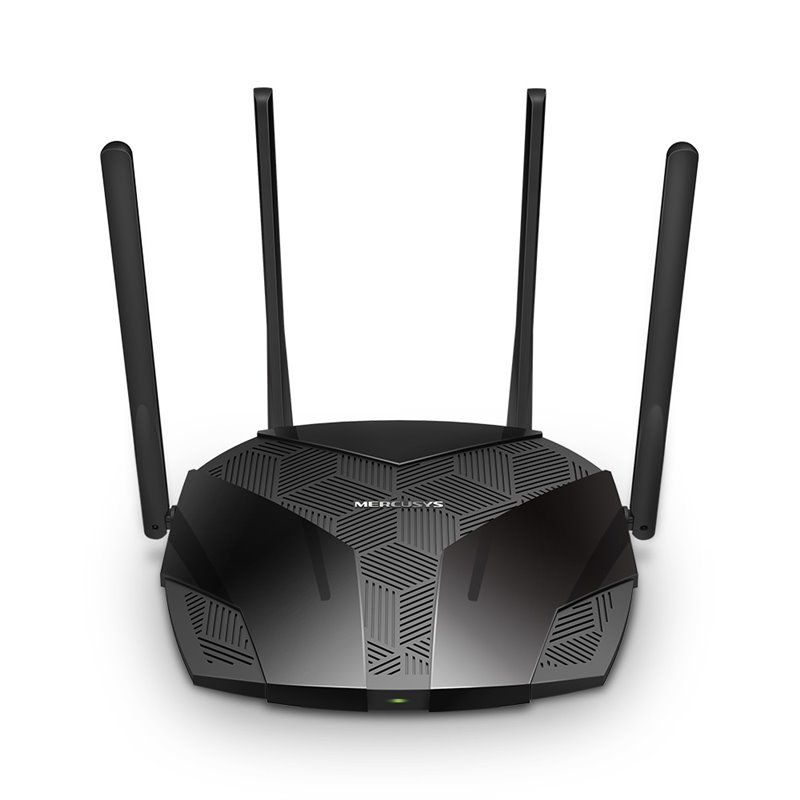

MERCUSYS MR70X - AX1800 Dual-Band WiFi 6 Router
10531
MERCUSYS
New product
MERCUSYS MR70X - AX1800 Dual-Band WiFi 6 Router
- Next-Gen WiFi 6 Speeds
- 4× More Capacity
- Broader, Stronger Coverage
- Overall Security Protection
- Gigabit Wired Connections
- Eco-Friendly Power Saving
- Less WiFi Interference
- Smart Connect
- Access Point Mode
More info
| WiFi 6 The Innovation of WiFi |
| The increasing number of wireless and smart home devices tests the limits of previous WiFi standards. The latest WiFi 6 standard implements advanced technology designed to boost the average data throughput per user in dense user environments, deliver more simultaneous connections, extend WiFi range, and maintain reliable data transmissions, satisfying the demand for a high-performance wireless experience. |
| Level Up Your Speeds with WiFi 6 |
| Enjoy unrivaled levels of speed with next-gen WiFi 6. By combining 1024-QAM and a long OFDM symbol, MR70X delivers total speeds of up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the highest settings without lag. |
| 4× More Capacity More Streams, More Devices, More Fun |
| WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, MR70X transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the throughput of your whole network under the same conditions. |
| WiFi 5 OFDM |
| Wastes bandwidth – Uses full channel bandwidth to transmit data for only one device at a time |
| WiFi 6 OFDMA |
| Makes full use of your bandwidth – Allows simultaneous data transmissions to and from several devices sharing one band |
| Improves Network Efficiency with MU-MIMO |
| Without MU-MIMO |
| Serves only one device at a time while all other devices that rely on that connection are forced to wait |
| With MU-MIMO |
| Transfers data streams to more devices simultaneously, improving overall network efficiency |
| Immerse Your Home in WiFi |
| Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable. |
| Overall Security Protection |
| The latest security standard, WPA3, provides improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks. |
| Protection Against Brute-Force Attacks |
| Prevents password-guessing attacks and delivers robust protections even when you are using a weak password |
| Your Data Is Safer |
| Forward Secrecy support prevents any captured data from being snooped even if a cracker compromises a session’s secret keys |
| Advanced Encryption Security |
| 128-Bit Encryption, which is considered to be logically unbreakable, creates an active defense against security threats and intruders |
| Less WiFi Interference |
| BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency.‡ |
| Eco-Friendly Power Saving |
| Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend battery life. |
| Smart Connect Combines Two Bands in One |
| Equipped with next-gen WiFi 6, both 5 GHz and 2.4 GHz are upgraded to the latest generation. Smart Connect combines the 2.4 GHz and 5 GHz bands into a single WiFi SSID and helps your devices intelligently choose the best available band that has a stronger signal and faster speed. This keeps your devices always running optimally when you walk around your home. |
| Easy Setup with MERCUSYS App |
| The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi at home or away through your iOS or Android |
| Parental Controls |
| Establish appropriate policies to protect your family with responsible, safe internet access |
| Guest Network |
| Provides a separate network for guests to ensure your security and privacy |
| Quality of Service |
| Prioritizes devices you select to perform better |
| IPTV Support |
| Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming |
| IPv6 Support |
| Allows you to enjoy IPv6 services provided by your ISP and lets you visit IPv6 websites |
| VPN Support |
| Supports OpenVPN and PPTP to create a secure VPN connection for remote access |
| Wireless | |
| Wireless Standards | Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards |
| Signal Rate | 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
| Reception Sensitivity | 11g 6Mbps: -96dBm |
| 11g 54Mbps: -78dBm | |
| 11n HT40 MCS7:-74dBm | |
| 11n HT20 MCS7:-77dBm | |
| 11a 6Mbps:-94dBm | |
| 11a 54Mbps:-76dBm | |
| 11ac VHT20 MCS8:-71dBm | |
| 11ac VHT40 MCS8:-68dBm | |
| 11ac VHT80 MCS8:-65dBm | |
| Transmission Power | 2.4 GHz < 20dBm (EIRP) |
| 5 GHz < 23dBm (EIRP) | |
| Wireless Security | WEP |
| WPA / WPA2-Personal | |
| WPA2 / WPA3-Personal | |
| Wireless Functions | Enable/Disable Wireless Radio, WMM |
| Software | |
| Operation Modes | Router Mode |
| Access Point Mode | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Access Control |
| Local Management | |
| Remote Management | |
| DHCP | Server, DHCP Client List |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security | SPI Firewall, IP and MAC Address Binding |
| Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Sever | OpenVPN, PPTP supported |
| Hardware | |
| Dimensions (W X D X H) | 8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm) |
| Interfaces | 1× Gigabit WAN Port + 3× Gigabit LAN Ports |
| Button | Reset/WPS Button |
| Antenna Type | 4× 5 dBi Fixed Omni-Directional Antennas |
| Others | |
| Package Contents | AX1800 Wi-Fi 6 Router MR70X |
| Power Adapter | |
| Quick Installation Guide | |
| RJ45 Ethernet Cable | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Operating Humidity: 10%~90% Non-Condensing | |
| Storage Humidity: 5%~90% Non-Condensing | |
