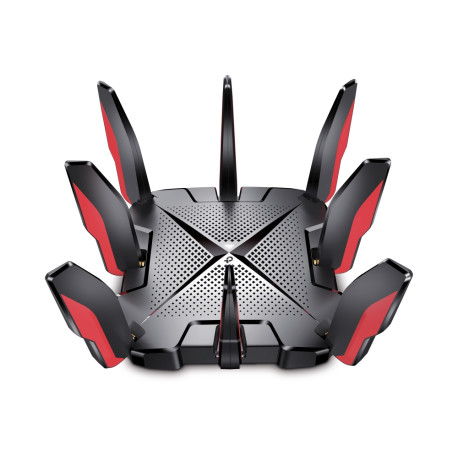

TP-link Archer GX90 AX6600 Tri-Band Wi-Fi 6 Gaming Router
10640
TP-Link
New product
- Game Band
- Game Accelerator
- Game Statistics
- Game Protector
- 2.5 Gbps Wired Connection
- Powerful Processing
More info
| WIRELESS | |
| Standards and Protocols | Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz | |
| IEEE 802.11ax/n/b/g 2.4 GHz | |
| WiFi Speeds | AX6600 |
| 5 GHz: 4804 Mbps (802.11ax, HE160) | |
| 5 GHz: 1201 Mbps (802.11ax) | |
| 2.4 GHz: 574 Mbps (802.11ax) | |
| WiFi Range | 4 Bedroom Houses |
| 8× Detachable High-Performance Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| High-Power FEM | |
| Improves transmission power to strengthen signal coverage | |
| 4T4R | |
| Multiple streams in the same band strengthen the fault tolerance in transmission | |
| WiFi Capacity | Very High |
| Tri-Band | |
| Allocate devices to different bands for optimal performance | |
| 4×4 MU-MIMO | |
| Simultaneously communicates with multiple MU-MIMO clients | |
| OFDMA | |
| Simultaneously communicates with multiple Wi-Fi 6 clients | |
| Airtime Fairness | |
| Improves network efficiency by limiting excessive occupation | |
| DFS | |
| Access an extra band to reduce congestion | |
| 8 Streams | |
| Connect your devices to more bandwidth | |
| Working Modes | Router Mode |
| Access Point Mode | |
| SECURITY | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| HomeCare™ Antivirus | |
| Malicious Site Checker | |
| Port Intrusion Prevention | |
| Infected Device Isolation | |
| Notification and Log | |
| Guest Network | 2× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| VPN Server | OpenVPN |
| PPTP | |
| VPN Client | Open VPN Client |
| PPTP VPN Client | |
| L2TP VPN Client | |
| WiFi Encryption | WPA |
| WPA2 | |
| WPA3 | |
| WPA/WPA2-Enterprise (802.1x) | |
| HARDWARE | |
| Processor | 1.5 GHz Quad-Core CPU |
| Ethernet Ports | 1× 2.5 Gbps WAN/LAN Port |
| 1× Gigabit WAN/LAN Port | |
| 3× Gigabit LAN Ports | |
| USB Support | 1× USB 3.0 Port |
| 1× USB 2.0 Port | |
| Supported Partition Formats: | |
| NTFS, exFAT, HFS+, FAT32 | |
| Supported Functions: | |
| Apple Time Machine | |
| FTP Server | |
| Media Server | |
| Samba Server | |
| Buttons | Wi-Fi On/Off Button |
| Power On/Off Button | |
| LED On/Off Button | |
| WPS Button | |
| Reset Button | |
| Power | 12 V ⎓ 5 A |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Game Center | Game Accelerator |
| Detects and optimizes gaming streams to keep latency as low as possible | |
| Game Statistics | |
| Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail | |
| Game Protector | |
| Keep your accounts and system safe with HomeCare™ antivirus protection | |
| Service Kits | HomeCare™ |
| OneMesh™ | OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| NO-IP | |
| DynDNS | |
| Management Features | Tether App |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20dBm(2.4GHz) | |
| <23dBm(5.15GHz~5.35GHz) | |
| <30dBm(5.47GHz~5.725GHz) | |
| FCC: | |
| <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) | |
| <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) | |
| WiFi Reception Sensitivity | 5 GHz-1: |
| 11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm | |
| 11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm | |
| 11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm | |
| 11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm | |
| 11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm | |
| 11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm | |
| 11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm | |
| 5 GHz-2 (Gaming Band): | |
| 11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm | |
| 11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm | |
| 11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm | |
| 11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm | |
| 11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm | |
| 11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm | |
| 11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm | |
| 11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm | |
| 11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm | |
| 2.4 GHz: | |
| 11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm | |
| 11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm | |
| 11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm | |
| 11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm | |
| 11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm | |
| 11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm | |
| 11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm | |
| PHYSICAL | |
| Dimensions (W×D×H) | 8.3 × 8.3 × 2.0 in |
| (212 × 212 × 51.8 mm) | |
| Package Content | Wi-Fi Router Archer GX90 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
