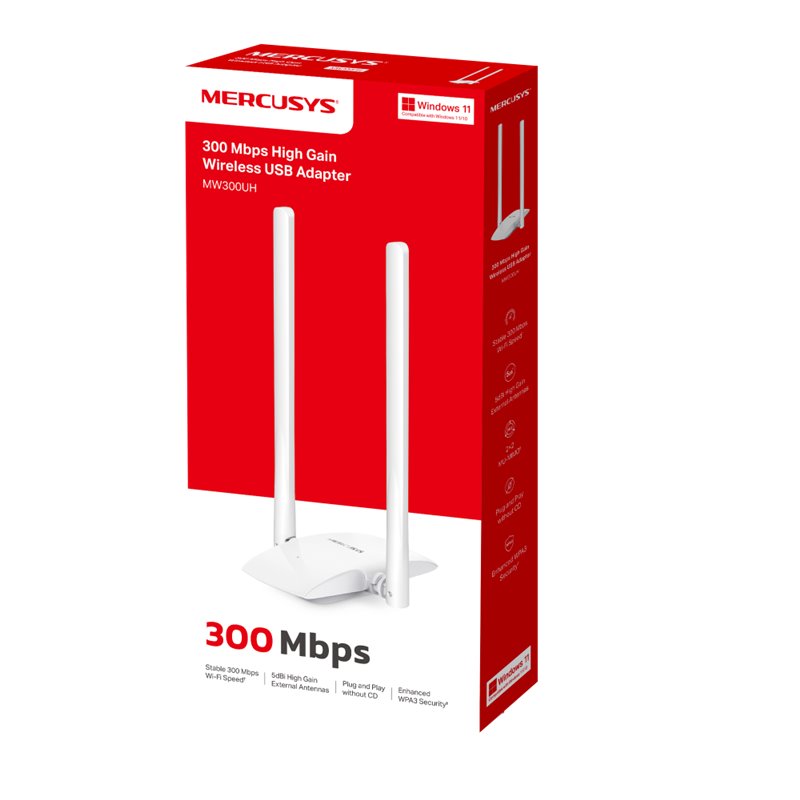

Mercusys MW300UH - 300Mbps High Gain Wireless USB Adapter
10502
MERCUSYS
New product
-
Provides fast 300Mbps Wi-Fi connections for wired devices
-
Two 5dBi high gain antennas deliver enhanced reception and transmission performance
-
2×2 MIMO technology enables easy access to high-speed wireless connections
-
Supports Windows 10/8.1/8/7/XP (32/64-bit)
More info
| Two High Gain 5dBi Antennas Leads to Maximized Range |
| MW300UH has two high-gain external antennas to ensure stronger signal transmission and reception, which helps users to gain a stable Wi-Fi connection across their home. |
| Desktop Design Greatly Avoids Signal Blocking |
| The cable makes it easy to find a spot for MW300UH in your workplace. Moreover, compared to the slot-inserted adapters, this design allows you to put it nearer to the router, in which way it can receive stronger signals. |
| Plug and Play |
| With the built-in inbox driver by Windows operation systems, you just need to plug this adapter into the computer and then enjoy the fast wireless network in seconds. |
| Operating System |
| Compatible with Windows 11/10/8.1/8/7/XP(32/64 bit) |
| WIRELESS | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400 - 2.4835 GHz |
| Signal Rate | 11n: Up to 300 Mbps (Dynamic) |
| 11g: Up to 54 Mbps (Dynamic) | |
| 11b: Up to 11 Mbps (Dynamic) | |
| Reception Sensitivity | 300M: -68 dBm@10% PER |
| 270M: -68 dBm@10% PER | |
| 144M: -71 dBm@10% PER | |
| 130M: -71 dBm@10% PER | |
| 54M: -74 dBm@10% PER | |
| 11M: -86 dBm@8% PER | |
| Transmission Power | ≤20 dBm (EIRP) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3-SAE |
| Hardware | |
| Dimensions (W X D X H) | 4.46 × 2.51 × 0.85 in. (without antennas) |
| 4.46 × 3.96 × 7.92 in. (with vertical antennas) | |
| 113.2 × 63.8 × 21.7 mm (without antennas) | |
| 113.2 × 100.5 × 201.1 mm(with vertical antennas) | |
| Interfaces | Micro USB 2.0 |
| Antenna Type | External |
| Others | |
| Certifications | CE, ROHS |
| Package Contents | 300 Mbps High Gain Wireless USB Adapter (MW300UH) |
| Quick Installation Guide | |
| Resource CD | |
| USB Cable (Micro USB to USB A) | |
| Environment | Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) |
| Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) | |
| Operating humidity: 10% ~ 90% Non-Condensing | |
| Storage humidity: 5% ~ 90% Non-Condensing | |
| System Requirements | Windows 11/10/8.1/8/7/XP (32/64bit) |
